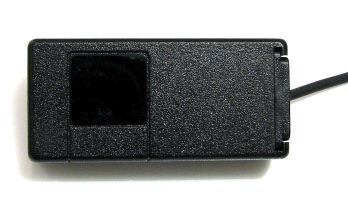

Bel RX-975 Laser Sensor
JACK pinout
Remote detector RX975 is using two separate laser sensors. Each sensor contain photo diodes, amplifier and microcontroller for analysis. Output is alert signal and there is no other communication among main unit and sensors. It is therefore possible to use these sensors separately.
Sensors are connected to the main unit by 2.5mm jack connectors. Pinout of the connector is in the table below.
| Pin number | Pin funtionality |
|---|---|
| 1 | Supply 12V |
| 2 | Alert output. When alert active this output is connected to ground through 1K resistor. |
| 3 | Ground |
Pictures
Internal pictures
 After removal of the cover |

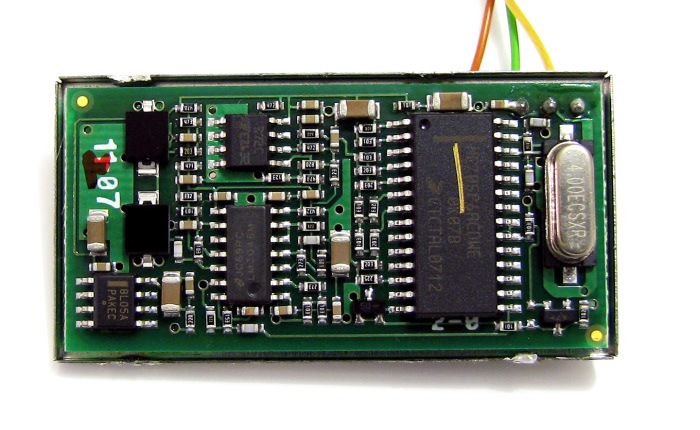

 PCB from the top |
